Multifill-1 & Multifill-2 Gas Fillers

The Multifill range has been designed to operate with all the inert gases and mixtures used in the insulated glass market using the two hole filling method. The Multifill-1 has a variable flow control between 1-15 litres a minute. This allows the customer to gas fill with Argon at the higher flow rate to maximise filling times. The flow rate can then be slowed down when using Krypton/ Xenon and mixed gases to minimise wastage of the more expensive gas.

The Multifill-2 is a dual line version of the Multifill-1. The Multifill range has been designed to operate with all the inert gases and mixtures used in the insulated glass market with both lines using the two hole filling method. The Multifill-2 has the ability to gas fill with two different gases at the same time. Each line has a variable flow control between 1-15 litres a minute. This allows the customer to gas fill with Argon at the higher flow rate to maximise filling times. The flow rate can then be reduced when using Krypton/ Xenon and mixed gases to minimise wastage of the more expensive gas. Alternatively both lines can be used to fill a Triple insulated glass unit with a different gas in each cavity.

Multifill-1 & Multifill-2 Gas Fillers

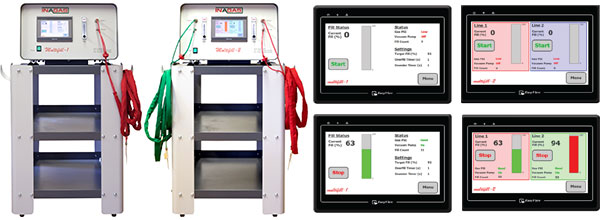

Multifill-1 Multifill-2 Multifill-1 Touch Screen Multifill-2 Touch Screen Multifill-1 Touch Screen Multifill-2 Touch Screen

Specifications

Dimensions:
H 350mmxW 540mmxD 656mm
175mm Touch Screen control
Visual & audible signals on completion of fill
Auto and manual calibration of sensor
Ability to change gas fill percentages
Variable overfill
Data logging
Flow Rate: Up to 15 litres per minute per line
Two hole filling
Vertical filling
Ability to vary gas flow
Alert when gas bottle empty
Available with either 1 or 2 filling lines
Optional mobile trolley
Optional 1.5mm filling lance for narrow units

Fill times

Unit size 1000mm x 1000mm x 15.5mm
Two hole filling 114 seconds,12 litres per minute
(per filling line)

Touch Screens

A 180mm touch screen touch screen gives a live display of the gas filling process and is also used to access the menu screen. From the menu screen gas percentage levels, overfill timer, data logging, pressure set up and calibration features can be accessed.

A Multifill-1 is fully upgradeable to Multifill-2 specifications at a later time.

Optional Features

Data Logging/Print Feature
