PIB Tape

Now available a simple and effective way to use PIB primary seal tape without the need for expensive equipment. It has been found that PIB is an effective barrier against gas loss for both hot melt and 2 part edge sealants. The Inagas tape is a butyl rubber, two sided, self adhesive tape reinforced with a cotton mesh for stability. This unique tape has been developed for spacer bar used in insulated glass units.

PIB Tape & Applicator

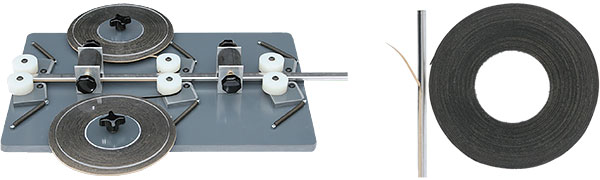

PIB Tape Applicator PIB Tape

The applicator will take any width of spacer bar. Simply push 4 metre bar lengths through the machine, which will apply the butyl tape to both sides of the spacer. The bar is then cut to the required size and filled with desiccant, made into a frame and the backing paper removed.

Technical Data

Size: 0.6mm x 3mm x 30mm
Packing: 100 rolls per box
Gravity: 1.35
Non volatile content: 99.6%
Tensile adhesion: 19.2 N/cm2

Tested to EN1279 UV/Fogging Norm.
Passes to EN1279 unit test

Application can be by hand or using a simple tape applicator.
