TestOxy - Gas Testing

Producers of insulated glass who have passed the EN 1279 parts 2 & 3 for gas filled units are required to test gas filled units on a regular basis to maintain their certification and ensure continued consistency of quality.

The latest TestOxy instrument is easy to use and powered by maintenance free batteries, which can recharge using the provided charger. The TestOxy can be used with all I.G. gases such as Argon, Krypton, Xenon and mixed gases.

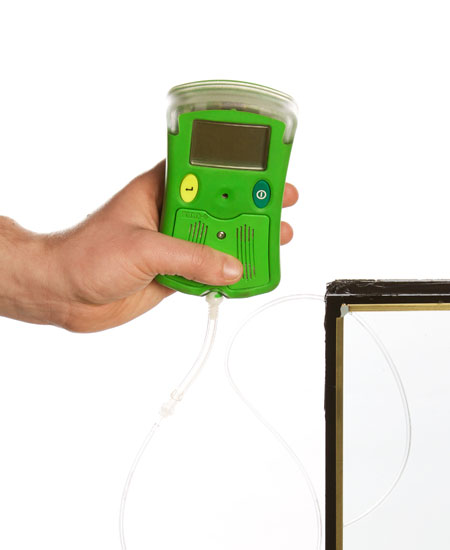

TestOxy - Gas Tester
TestOxy - Gas Tester TestOxy Screen TestOxy Screen TestOxy Screen TestOxy Screen

Specifications

Dimsensions: 140 x 85 x 45mm
Weight: 0.4kg
Power: Alkaline AA Cells
NiMH recharge pack

Supplied with the following:

Sample hose
Re-Charging unit
Piercing Tool
Manual
Calibration Certificate

Testing Process

The testing is done by pressing the start button, the LED display starts by showing the Inagas logo which indicates the warm up and calibration sequence has started. The screen will then display 00 and is ready to take a gas sample. Insert the probe into the unit, press start and the reading will show the percentage of gas in the unit.
