Smartspeed-1 and Smartspeed-2 Gas Filler

The Smartspeed range is available as either a single or twin line machine designed for high speed Argon gas filling.

The internal IG pressure sensor automatically regulates the variable filling speed between 70-85 litres a minute to ensure a pressure balanced and accurate gas fill. Features from the Smartfill range such as the Smartstart Remote, Data logging and Print Feature are included as standard.

Smartspeed-1 Gas Filler

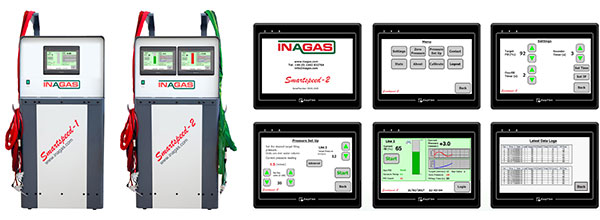

Smartspeed-1 Smartspeed-2 Smartspeed-2 Touch Screen Smartspeed-2 Touch Screen Smartspeed-2 Touch Screen Smartspeed-2 Touch Screen Smartspeed-2 Touch Screen Smartspeed-2 Touch Screen Smartspeed-2 Touch Screen Smartspeed-2 Touch Screen

Specifications

H 1516mm x W 735mm x D 701mm 250mm
Touch Screen controls
Visual & audible signals on completion of fill
Automatic IG pressure control
Auto and manual calibration of sensor
Ability to change gas fill percentages
Variable overfill
Data logging and print feature as standard
Flow Rate: Up to 85 litres per minute
Smartspeed-1 can be upgraded to Smartspeed-2
Menu Pin code lock
Alert when gas bottle empty
Language settings
Smartstart remote

Filling Times

1000mm x 1000mm x 12mm 32 seconds
1000mm x 1000mm x 16mm 40 seconds

Touch Screens

The 250mm touch screen shows a live display of the gas filling process and IG pressure. The screen also allows access via a protected pin code entry to the menu screen where settings such as gas fill percentage, Data logging, overfill timer and calibration routine can be viewed and adjusted.
