Gas Fillers
SmartFill-1 and SmartFill-2
Argon only gas filling machine with 250mm touch screen controls, with unique visual and audible signals to enhance control and improve productivity - capable of 30 litres per minute. The SmartFill-1 is designed for single line production, whilst the SmartFill-2 is designed for dual line production.
Click here to see a video clip of the SmartFill 2 gas filling machine

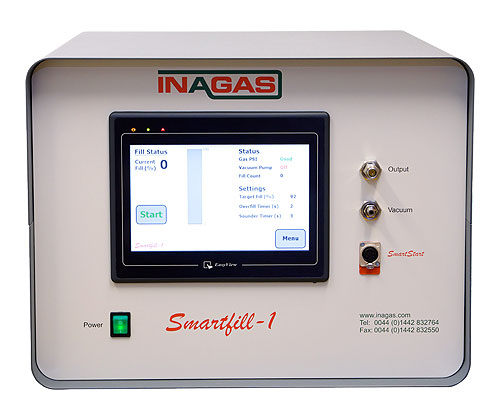

SmartFill-1 Gas Filler

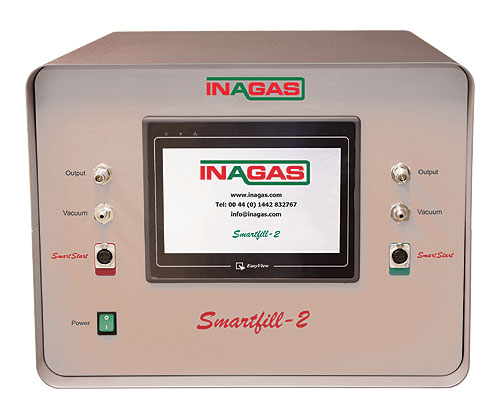

SmartFill-2 Gas Filler
The SmartFill range of gas filling equipment uses the latest in touch screen technology giving the operator complete control over the gas filling process.
SmartFill Technical Specifications
- 1 line Argon gas filler
- Dimensions: H407mm x W540mm x D656mm
- Power: 13 amp
- 250mm Touch Screen control
- Visual & audible signals on completion of fill
- Auto and manual calibration of sensor
- Ability to change gas fill percentages
- Variable overfill and dwell times
- Unit counter
- Flow Rate: 30 litres per minute per line
- One hole or two hole filling options
- Vertical or horizontal filling options
- Ability to vary gas flow to suit hole size
- Alert when gas bottle empty
- Fill times
- Unit size 122cm x 610cm x 15.5mm
- One hole filling 95 seconds
- Two hole filling 62 seconds
- Supplied with SmartStart lances
- Including gas regulator (UK only)
- Other models in the Inagas range
- Smartfill-2 2 line Argon gas filler
- Smartfill-4 4 line argon gas filler
- Smartfill High Speed 1 & 2 line Argon filler
- MultiFill 1 & 2 line Krypton/Xenon gas filler

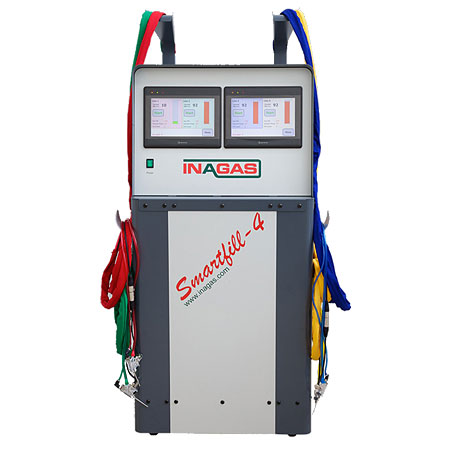

SmartFill-4
The SmartFill-4 is designed for high volume production of Argon gas filled units. Each of its 4 filling lines is fitted with the SmartStart lance and can be used with either one or 2 hole filling options.
The touch screens enable the operator to have complete control over the gas filling process. Quick and easy to use for greater productivity.
The SmartFill range is supplied with the new *SmartStart filling lance, it is fitted with a on/off control button so that the operator can start the gas filling process from the lance rather having to return to the gas machine. The lance body incorporates an LED light which goes green during filling, turns red on completion and after 30 seconds will turn off. The operator can see immediately which unit is filling and which has been finished. Production efficiency is increased and errors eliminated. * Patent Pending
SmartFill-4 Technical Specifications
- Dimensions: H 1516mm x W 735mm x D 701mm
- Power: 13 amp
- 2 off 250mm Touch Screen controls
- Visual & audible signals on completion of fill
- Auto and manual calibration of sensor
- Ability to change gas fill percentages
- Variable overfill and dwell times
- Unit counter
- Flow Rate: Up to 30 litres per minute per line
- Two hole or one hole filling options
- Vertical filling or horizontal options
- Alert when gas bottle empty
- Four filling lines with SmartStart lance system
- Fill times
- Unit size 122cm x 61cm x 15.5mm
- Two hole filling 62 seconds
- One hole filling 95 seconds
- Including gas regulator (UK only)
MultiFill-1 and MultiFill-2
The MultiFill range has been designed to operate with a variety of inert gasses such as Argon, Krypton, Xenon and pre-mixed gas for the insulated glass market. The MultiFill has variable flow control and coupled with the ability to easily change gas fill percentages ensures that gas loss is kept to a minimum. This is particularly important when using Krypton, Xenon and blended gas which are relatively expensive. All the functions of the MultiFill can be accessed through the touch screen giving the operator complete control over the gas filling process.

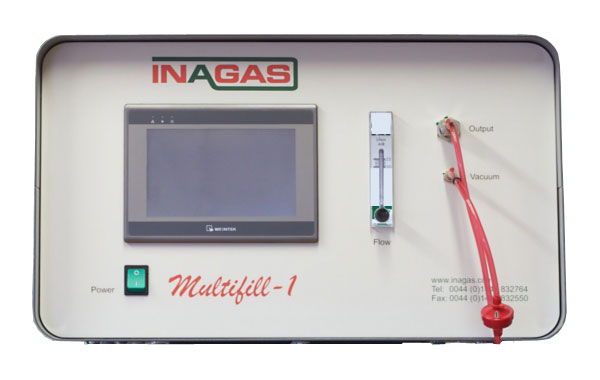

MultiFill-1 Gas Filler

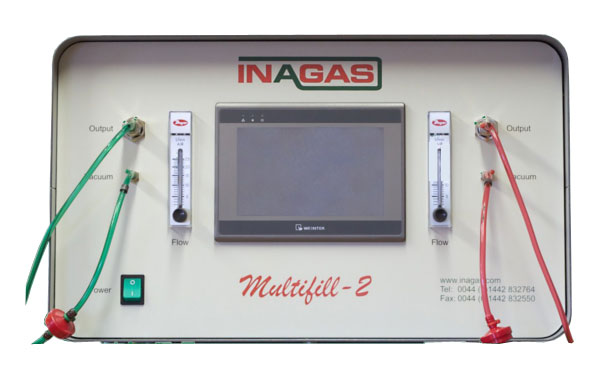

MultiFill-2 Gas Filler
The MultiFill range of gas filling equipment uses the latest in touch screen technology giving the operator complete control over the gas filling process.
MultiFill Technical Specifications
- Dimensions: H350mm x W540mm x D656mm
- Power: 13 amp
- 175mm Touch Screen control
- Visual & audible signals on completion of fill
- Auto and manual calibration of sensor
- Ability to change gas fill percentages
- Variable overfill and dwell times
- Unit counter
- Flow Rate: Up to 15 litres per minute per line
- Two hole filling
- Vertical filling
- Ability to vary gas flow
- Alert when gas bottle empty
- Available with either 1 or 2 filling lines
- Optional mobile trolley
- Optional 1.5mm filling lance for narrow units
- Fill times:
- Unit size 910mm x 610mm x 15.5mm
- Two hole filling 58 seconds
- Including gas regulator (UK only)

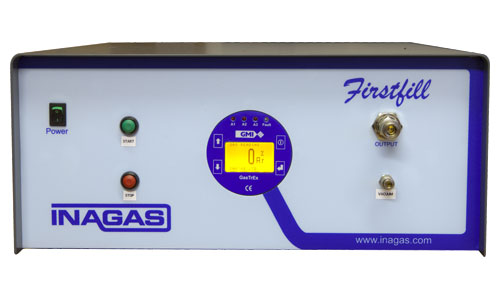

FirstFill
The FirstFill has been designed as an introductory gas filler to those companies who looking to offer gas filling for the first time. It has the normal two hole gas filling hoses which permits the gas to flow into the unit at a rate of 6 litres per minute.
The FirstFill has a unique calibration system operated by a magnetic wand which enables the operator to calibrate the equipment and to set the target level of gas filling.
FirstFill Technical Specifications
- Dimensions: H 185mm x W 420 mm x D 460mm
- Power: 13 amp
- 44 W x 27 H mm Screen control
- Visual & audible signals on completion of fill
- manual calibration of sensor
- Ability to change gas fill percentages
- Flow Rate: Up to 6 litres per minute
- Two hole filling
- Vertical filling
- Optional mobile trolley
- Optional 1.5mm filling lance for narrow units
- Fill times
- Unit size 910mm x 610mm x 15.5mm
- Two hole filling 90 seconds
- Including gas regulator (UK only)
SmartStart
The Smartfill range includes the new innovative SmartStart filling lance which is set to revolutionise gas filling. Constructed from top grade clear plastic with an embedded LED light and on/off button, all the operator has to do, is insert the lance into the unit and press the button to start the gas filling process.

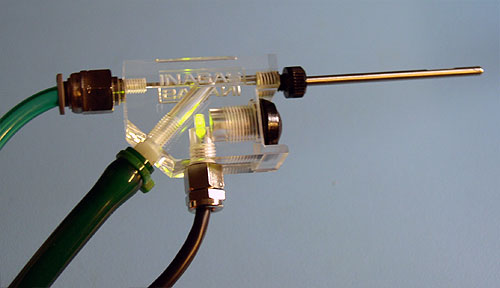

Glows Green During Gas Filling

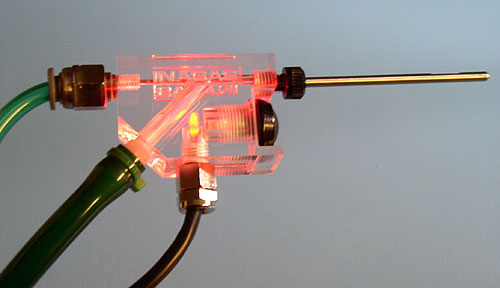

Turns Red On Completion
The LED glows green during gas filling, turns red on completion and turns off after 30 seconds. It’s as straight forward as that and the operator can see at a glance the filling status of the units making production faster and easier.
